Lab 7: Clickjacking

  • First read this page then start working through the lab with the GitHub classroom link below.
  • The files that you need to complete this lab are also found in the GitHub repository.
  • Put your answers in the README.md file in the GitHub repository.
  • Github Classroom Link: https://classroom.github.com/a/LoqeON-y

Overview of Clickjacking

Clickjacking

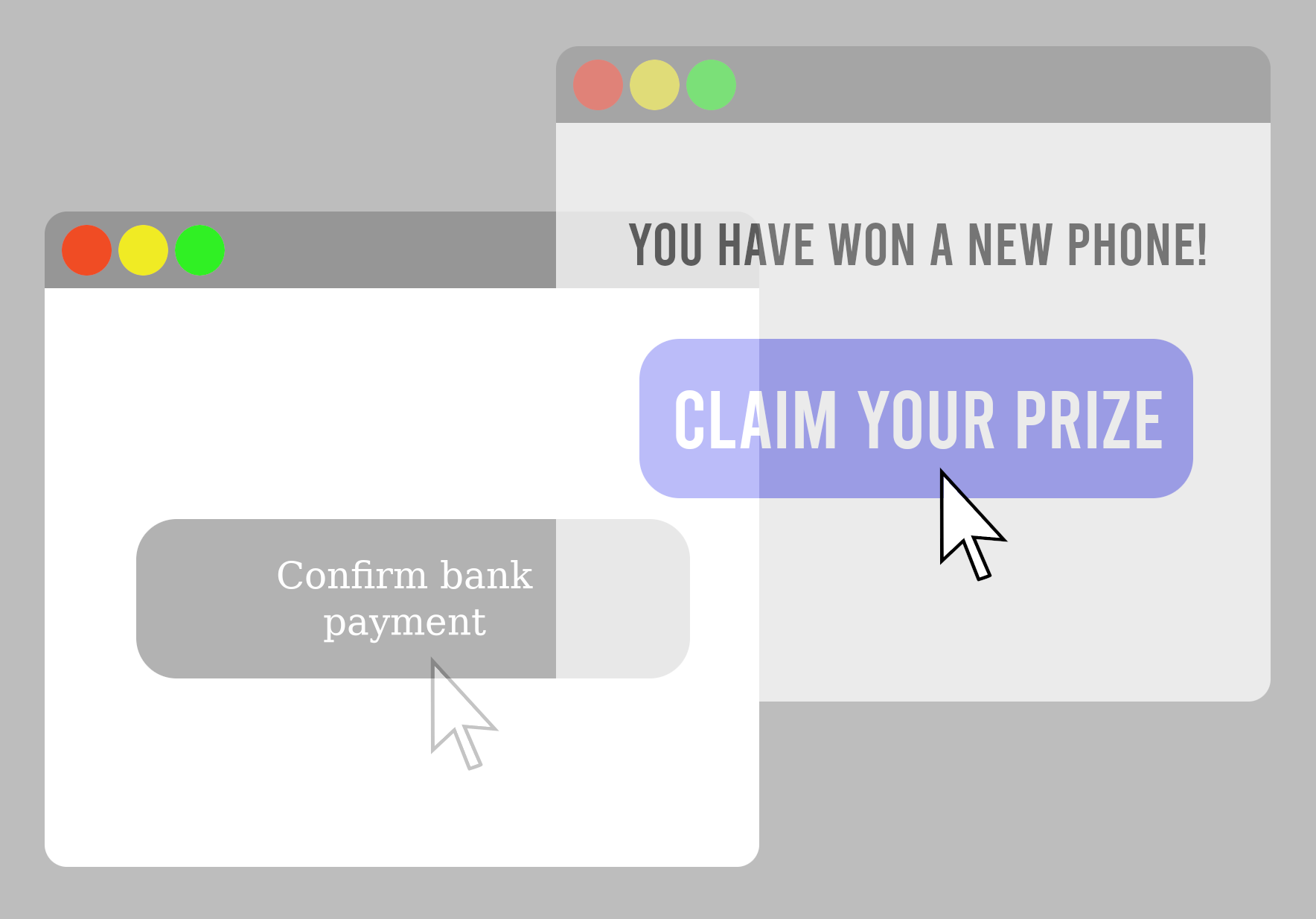

Clickjacking is an attack that tricks a user into clicking on something they do not intend to when visiting a webpage, thus "hijacking" the click. It exploits the ability to load a transparent layer over a web page and have the user's input affect the transparent layer without the user noticing.

In this lab, we will explore a common attack vector for clickjacking: the attacker creates a webpage that loads the content of a legitimate page but overlays one or more of its buttons with invisible button(s) that trigger malicious actions. When a user attempts to click on the legitimate page's buttons, the browser registers a click on the invisible button instead, triggering the malicious action.

Example scenario. Suppose an attacker acquires the domain starbux.com and creates a website with that URL. The site first loads the legitimate target website starbucks.com in an iframe element spanning the entire webpage, so that the malicious starbux.com website looks identical to the legitimate starbucks.com website. The attacker's site then places an invisible button on top of the Menu button on the displayed starbucks page; the button triggers a 1-click purchase of the attacker's product on Amazon. If the user is logged on to Amazon when they try to click the legitimate button, the inadvertent click on the invisible button will make the unintended purchase without the user's knowledge or consent.

This lab covers the following topics:

  • Clickjacking attack
  • Countermeasures: frame busting and HTTP headers
  • Iframes and sandboxes
  • JavaScript

Important Note:

In the following instructions, you must replace the # sign with the server number assigned to you for this module. For example, if your number is 4 then spiderwebdev#.xyz should be replaced with spiderwebdev4.xyz

Lab Setup

In this lab, we will use two websites. The first is the vulnerable homepage of the fictional business "Alice's Cupcakes", accessible at https://spiderwebdev#.xyz/cupcakes/. The second is the attacker's malicious web site that is used for hijacking clicks intended for the Alice's Cupcakes page, accessible at https://attackwebdev#.xyz/attack/attacker.html.

Important note. Any time you make updates to the websites, you may need to clear the browser's cache and refresh the page.

Setup and Test: Alice's cupcakes

Alice's cupcakes will be hosted on your spiderwebdev# web server. Copy the files into place in the /var/www/html directory. You may need to make the /var/www/html directory writable. You can do that by setting the permissions with sudo chmod a+rwx /var/www/html.

  1. In the /var/www/html directory on spiderwebdev# create a new directory called cupcakes.
     $ mkdir /var/www/html/cupcakes
  2. From your GitHub repository folder cupcakes copy the files index.html and defender.css into the /var/www/html/cupcakes folder.
  3. Next, navigate to the page https://spiderwebdev#.xyz/cupcakes/. You should see a page for Alice's Cupcakes, a fictional local bakery. Note that the header and footer buttons on the site are just placeholders and do not contain live links.
Setup and Test: Attacker

The attacker website will be hosted on your attackwebdev# web server. Copy the files into place in the /var/www/html directory. You may need to make the /var/www/html directory writable. You can do that by setting the permissions with sudo chmod a+rwx /var/www/html.

  1. In the /var/www/html directory on attackwebdev# create a new directory called attack.
     $ mkdir /var/www/html/attack
  2. From your GitHub repository folder attack copy the files attacker.html, hacked.html and attacker.css into the /var/www/html/attack folder.
  3. Next, navigate to the page https://attackwebdev#.xyz/attack/attacker.html. You should see a single button which, when clicked, takes you to a page that tells you you've been hacked. In a real attack, this button could perform a variety of malicious actions. The goal of the attacker is to overlay this button onto a view of the defender's (Alice's cupcakes) webpage displayed on the attacker's site, so that a victim user will inadvertently click the malicious button when they think they are clicking a button on the defender's (Alice's cupcakes) webpage.

Lab Tasks

Task 1: Copy that site!

In the cupcakes folder, you will find the files comprising the website for Alice's Cupcakes: index.html and defender.css. In the attack folder, you will find the files comprising the attacker's web-site: attacker.html and attacker.css. You will be making changes to all of these files except defender.css throughout the lab. Our first step as the attacker is to add code to attacker.html so that it mimics the Alice's Cupcakes website as closely as possible. A common way to do this is with an HTML Inline Frame element ("iframe"). An iframe enables embedding one HTML page within another. The src attribute of the iframe specifies the site to be embedded, and when the iframe code is executed on a page, the embedded site is loaded into the iframe.

Embed the defender's site (Alice's cupcakes) into the attacker's site.

  • Add an iframe HTML element in attacker.html that pulls from https://spiderwebdev#.xyz/cupcakes/.
  • Modify the CSS in attacker.css using the height, width, and position attributes to make the iframe cover the whole page and the button overlay the iframe. For example:
      position: absolute;
  border: none;
  height: 100%;
  width: 100%;
  • Hints:
    • View the html files in the examples folders and load them in the browser to see the results.
    • Explicitly set the iframe to have no border.
    • Investigate the ‘absolute' and ‘relative' settings of the position attribute to determine which should be used.
    • Test your changes by navigating to the attacker's website. (Remember that you may need to clear the browser's cache and reload the page to see changes made after the initial load.)
    • Note: you should also modify the version number of the css in the attacker.html file each time you modify the attacker.css file, this will instruct the browser to load your new version of the css file. For example, change version=1 to version=2 the first time you modify attacker.css. You still need to clear the cache in the browser. On Firefox this is done by going to History->Clear Recent History..., then clicking the Clear Now button.
<link href="attacker.css?version=1" type="text/css" rel="stylesheet"/>

Question:

  1. With the iframe inserted, what does the attacker's website look like?

Let's Get Clickjacking!

Basic clickjacking attack. Add code to the CSS specification of a "button" object given in attacker.css to make the malicious button in attacker.html invisible. Position the button so that it covers the "Explore Menu" button within the iframe added in the previous Task. There are a variety of ways to accomplish this Task; we recommend using the CSS attributes margin-left,margin-top, color, and background-color. When this Task is complete, you will have a functioning clickjacking attack.

Questions:

  1. How does the appearance of the attacker's site compare to that of the defender's site?
  2. What happens when you click on the "Explore Menu" button on the attacker's site?
  3. Describe an attack scenario in which the style of clickjacking implemented for this Task leads to undesirable consequences for a victim user.

Task 2: Bust That Frame!

"Frame busting" is the practice of preventing a web page from being displayed within a frame, thus defending against the type of attack implemented in the previous Task. One way to bust frames is to include script code in the webpage source that prevents the site from being framed – that is, it prevents other sites from opening the webpage in an iframe. In this Task we will add script code to the defender's webpage that ensures it is the topmost window on any page where it is being displayed, thus preventing buttons on an attacker's page from being overlaid on top of it.

Write the frame-busting script. Open the file cupcakes/index.html, which contains code for the Alice's Cupcakes homepage. We would like to protect the homepage from clickjacking. Your task is to fill in the Javascript method called makeThisFrameOnTop(). Your code should compare window.top and window.self to find out if the top window and the current site's window are the same object (as they should be). If not, use the Location Object to set the location of the top window to be the same as the location of the current site's window. This should be a simple method and take no more than a few lines of code. Test it out and confirm that your script successfully stops the clickjacker.

Example:

if (window.top !== window.self) {
    window.top.location = window.self.location;
}

Reminder. Remember that any time you make changes to one of the websites, you may need to clear the browser's cache and reload the page for the changes to take effect.

Questions:

  1. What happens when you navigate to the attacker's site now?
  2. What happens when you click the button?

Task 3: Attacker Countermeasure (Bust the Buster)

Disable the frame-busting script. Now let's explore how an attacker can create a workaround for front-end clickjacking defenses like frame busting. There are multiple workarounds, but one of the simplest in the current scenario is to add the sandbox attribute to the malicious iframe. Read more about the sandbox attribute on this page about iframes: https://developer.mozilla.org/en-US/docs/Web/HTML/Element/iframe Then add the sandbox attribute to the iframe in attacker.html and answer the following questions.

Questions:

  1. What does the sandbox attribute do? Why does this prevent the frame buster from working?
  2. What happens when you navigate to the attacker's site after updating the iframe to use the sandbox attribute?
  3. What happens when you click the button on the attacker's site?

Learn more

There are other ways to perform clickjacking besides the one explored in this lab, and many possible malicious consequences beyond the ones suggested here. To learn more about clickjacking, visit the Open Web Application Security Project (OWASP) page on Clickjacking here. https://owasp.org/www-community/attacks/Clickjacking

Acknowledgements

This lab is a modified remix of a Creative Commons lab created by Collin Howland, Faith Letzkus, Julio Trujillo, and Steve Cole at Washington University in St. Louis. This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.
