In particular, you will use the ARP attack to launch a machine-in-the-middle attack, where the attacker can intercept and modify the packets between the two victims A and B.

Task 2: MITM attack on telnet using ARP cache poisoning

Hosts A and B are communicating using telnet, and Host M wants to intercept their communication, so it can make changes to the data sent between A and B. The setup is depicted in Figure 2.

ARP Attack

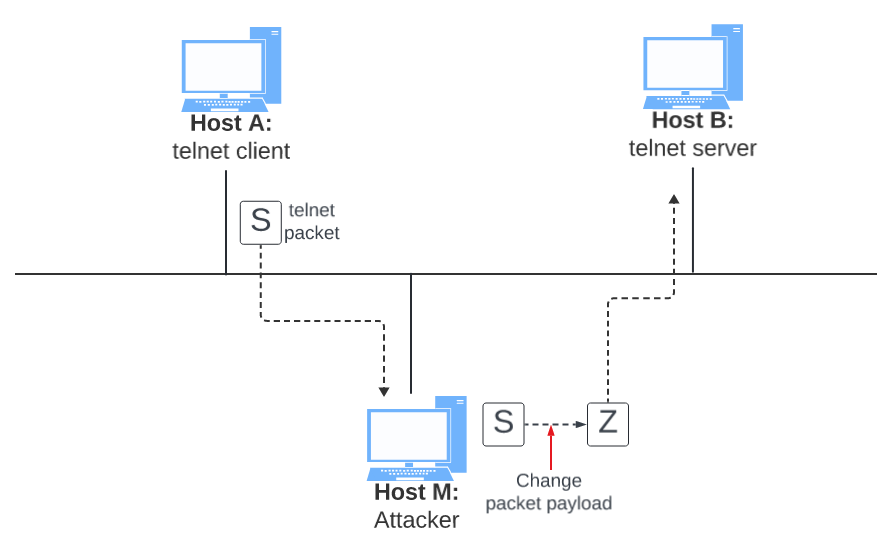

Figure 2. Machine in the middle attack against telnet.

Step 1 (Launch the ARP cache poisoning attack): First, Host M conducts an ARP cache poisoning attack on both A and B, such that in A's ARP cache, B's IP address maps to M's MAC address, and in B's ARP cache, A's IP address also maps to M's MAC address. After this step, packets sent between A and B will all be sent to M. We will use the ARP cache poisoning attack from Task 1 to achieve this goal. It is better that you send out the spoofed packets constantly (e.g. every 5 seconds); otherwise, the fake entries may be replaced by the real ones.

Step 2 (Testing): After the attack is successful, please try to ping each other between Hosts A and B, and report your observation. Please show tcpdump results in your README.md file. Before doing this step, please make sure that the IP forwarding on Host M is turned off. You can do that with the following command (as root):

$ sudo sysctl net.ipv4.ip_forward=0

Step 3 (Turn on IP forwarding): Now we turn on the IP forwarding on Host M, so it will forward the packets between A and B. Please run the following command (as root) and repeat Step 2. Please describe your observation in your README.md file.

$ sudo sysctl net.ipv4.ip_forward=1

Step 4 (Launch the MITM attack): We are ready to make changes to the telnet data between A and B. Assume that A is the telnet client and B is the telnet server. After A has connected to the telnet server on B, for every key stroke typed in A's telnet window, a TCP packet is generated and sent to B. We would like to intercept the TCP packet, and replace each typed character with a fixed character (say Z). This way, it does not matter what the user types on A, telnet will always display Z. From the previous steps, we are able to redirect the TCP packets to Host M, but instead of forwarding them, we would like to replace them with a spoofed packet. We will write a sniff-and-spoof program to accomplish this goal. In particular, we would like to do the following:

  • We first keep the IP forwarding on, so we can successfully create a telnet connection between A to B. Once the connection is established, we turn off the IP forwarding using the following command (run as root). Please type something on A's telnet window, and report your observation:
$ sudo sysctl net.ipv4.ip_forward=0
  • We run our sniff-and-spoof program on Host M, such that for the captured packets sent from A to B, we spoof a packet but with TCP different data. For packets from B to A (telnet response), we do not make any change, so the spoofed packet is exactly the same as the original one.

To help you get started, we provide a skeleton sniff-and-spoof program below. The program captures all the TCP packets, and then for packets from A to B, it makes some changes (the modification part is not included, because that is part of the task). For packets from B to A, the program does not make any change.

#!/usr/bin/env python
from scapy.all import *

IP_A = "172.18.123.6"
MAC_A = "e8:6a:64:ce:4b:df"
IP_B = "172.18.123.5"
MAC_B = "e8:6a:64:ce:4c:cd"

def spoof_pkt(pkt):
    if pkt[IP].src == IP_A and pkt[IP].dst == IP_B:
        # Create a new packet based on the captured one.
        # 1) We need to delete the checksum in the IP & TCP headers,
        # because our modification will make them invalid.
        # Scapy will recalculate them if these fields are missing.
        # 2) We also delete the original TCP payload.

        newpkt = IP(bytes(pkt[IP]))
        del(newpkt.chksum)
        del(newpkt[TCP].payload)
        del(newpkt[TCP].chksum)

        #################################################################
        # Construct the new payload based on the old payload.
        # You need to implement this part.

        if pkt[TCP].payload:
            data = pkt[TCP].payload.load # The original payload data
            newdata = data # No change is made in this sample code
            send(newpkt/newdata)
        else:
            send(newpkt)

        ################################################################

    elif pkt[IP].src == IP_B and pkt[IP].dst == IP_A:
        # Create new packet based on the captured one
        # Do not make any change

        newpkt = IP(bytes(pkt[IP]))
        del(newpkt.chksum)
        del(newpkt[TCP].chksum)
        send(newpkt)

f = 'tcp'
pkt = sniff(iface='eth0', filter=f, prn=spoof_pkt)

It should be noted that the code above captures all the TCP packets, including the one generated by the program itself. That is undesirable, as it will affect the performance. You need to change the filter, so it does not capture its own packets.

Behavior of telnet. In telnet, typically, every character we type in the telnet window triggers an individual TCP packet, but if you type very fast, some characters may be sent together in the same packet. That is why in a typical telnet packet from client to server, the payload only contains one character. The character sent to the server will be echoed back by the server, and the client will then display the character in its window. Therefore, what we see in the client window is not the direct result of the typing; whatever we type in the client window takes a round trip before it is displayed. If the network is disconnected, whatever we typed on the client window will not displayed, until the network is recovered. Similarly, if attackers change the character to Z during the round trip, Z will be displayed at the telnet client window, even though that is not what you have typed.

Report the results of your attack in your README.md file.

Task 3: MITM Attack on Netcat using ARP Cache Poisoning

This task is similar to Task 2, except that Hosts A and B are communicating using netcat, instead of telnet. Host M wants to intercept their communication, so it can make changes to the data sent between A and B. You can use the following commands to establish a netcat TCP connection between A and B:

On Host B (server, IP address is 172.18.123.5), run the following:

  • Pick a random port between 1000 and 5000. Replace port 1234 below with your random port number choice.
$ nc -lp 1234

On Host A (client), run the following:

$ nc 172.18.123.5 1234

Once the connection is made, you can type messages on A. Each line of messages will be put into a TCP packet sent to B, which simply displays the message. Your task is to replace every occurrence of your first name in the message with a sequence of A's. The length of the sequence should be the same as that of your first name, or you will mess up the TCP sequence number, and hence the entire TCP connection. You need to use your real first name, so we know the work is done by you.

Report the results of your attack in your README.md file.
